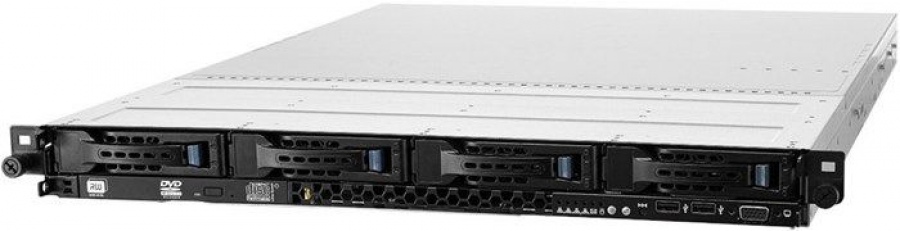

Сервер ASUS RS60A Z9PE #1

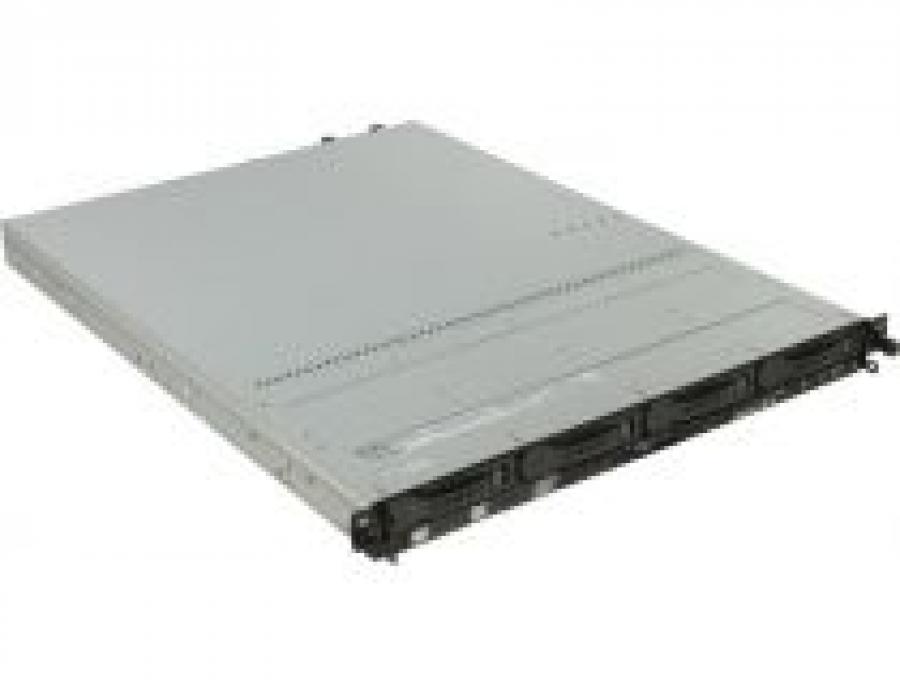

Сервер ASUS RS60A Z9PE #2
Предложения вторичного рынка
Нет предложений
Загрузка...
Описание и характеристики
Процессор / Системная шина: 2 x Socket 2011
Intel® Xeon® processor E5-2600 product family Processor
QPI 6.4 / 7.2 / 8.0 GT/s

Чипсeт: Intel® C602-A PCH

Оперативная память:
Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 512GB RDIMM
Memory Type :
DDR3, 1066/1333/1600, RDIMM
DDR3, 1066/1333, UDIMM
DDR3, 1066/1333, LRDIMM

Memory Size :
2GB, 4GB, 8GB, 16GB RDIMM
2GB, 4GB, 8GB UDIMM
8GB, 16GB, 32GB LRDIMM

Слоты расширения:
Total Slot : 6
Slot Location 1 : PCI-E x16 (Gen3 X8 Link)
Slot Location 2 : PCI-E x16 (Gen3 X16 Link)
Slot Location 3 : PCI-E x16 (Gen3 X16 Link)
Slot Location 4 : PCI-E x16 (Gen3 X16 Link)
Slot Location 5 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 6 is occupied
Slot Location 6 : PCI-E x16 (Gen3 X8 Link), MIO supported
Additional Slot 1 : PIKE Slot for Stroage expansion
Follow SSI Location#

Форм-фактор: EEB (12"x13")

Технологии ASUS:
Fan Speed Control
Rack Ready (Rack and Pedestal Dual Use)
ASWM Enterprise

Хранилище данных:
SATA Controller : Intel® C602-A AHCI
4 x SATA2 300MB/s ports
2 x SATA3 6Gb/s ports
Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
LSI® MegaRAID (for Linux/Windows)
(Support Software RAID 0, 1, 10 )

SAS Controller :
ASUS PIKE 2008 8-port SAS 6G RAID card (Optional)
ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional)
ASUS PIKE 2108 8-port SAS2 6G RAID card (Optional)

SATA Controller : Intel® C602-A SCU
4 x SATA2 300MB/s ports
Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )

Сеть:
1 x Dual Port Intel Ethernet Controller i350-AM2 + 1 x Mgmt LAN

Графика: Aspeed AST2300 with 16MB

Разъемы на плате:
1 x TPM header
1 x PSU Power Connector , 24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector
1 x Management Connector , Onboard socket for management card
2 x USB pin header , Up to 4 Devices
1 x Internal A Type USB Port
8 x Fan Header , 4pin
1 x Chassis Intruder
2 x Serial Port Header
2 x SMBus

Разъемы на задней панели:
2 x External USB Port
1 x VGA Port
2 * GbE LAN + 1 * Mgmt LAN
1 x PS/2, 1 KB/mouse

Администрирован-е:
ASWM Enterprise
ASMB6-iKVM for KVM-over-Internet
