MB LGA 1155 ACER Q65H2-AM
Цена аналогичного нового товара
~6 187 ₽
Предложения вторичного рынка
| Нет предложений |
Загрузка...
Описание и характеристики

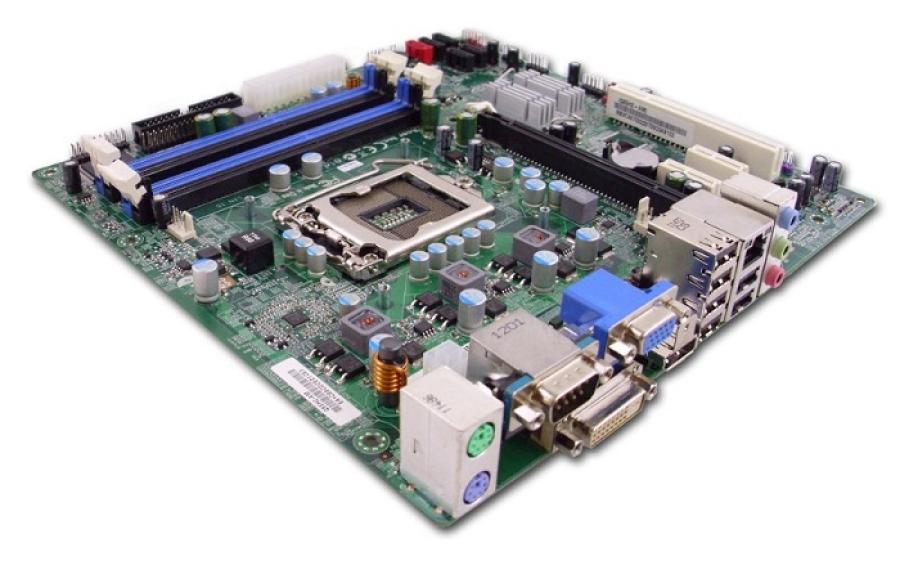

Q65H2-AM Motherboard Specifications
CPU
Support Processor Type: Intel 2nd Generation (Sandy Bridge)(Max 95W) Core i7 2600 Quad, i5 2500, 2400, 2300, i3 (Dual-Core)
Socket Type - LGA 1155
Chipset - Intel Q65 Express
Video - Intel HD Graphics
Memory - 4 * 240-pin DDR3 DIMM slots – Dual Channel DDR3 1333 MHz non-ECC, un-buffered memory (Max 16GB)
Expansion Slots - 1 x PCI Express x16 (2.0);2 x PCI Express x1;1 x PCI
Storage - 5 x SATAII 3.0Gb/s connectors
Audio - Realtek – High Definition
Ethernet - Intel – (Gigabit)
Rear Panel:
1 x PS/2 for keyboard (purple)
1 x PS/2 for mouse (green)
6 x USB 2.0 ports
1 x RJ-45 LAN port
1 x Serial port
1 x VGA Port
1 x Audio I/O
1 x VGA Port
1 x DVI-D port
1 x HDMI
Internal
3 x USB headers
1 x CPU Fan connector (4-pin)
1 x System Fan connector (3-pin)
1 x ATX 12V Power connector (4-pin)
1 x ATX Power connector (24-pin)
1 x Front Panel header
1 x Clear CMOS jumper
Form Factor
Micro-ATX
