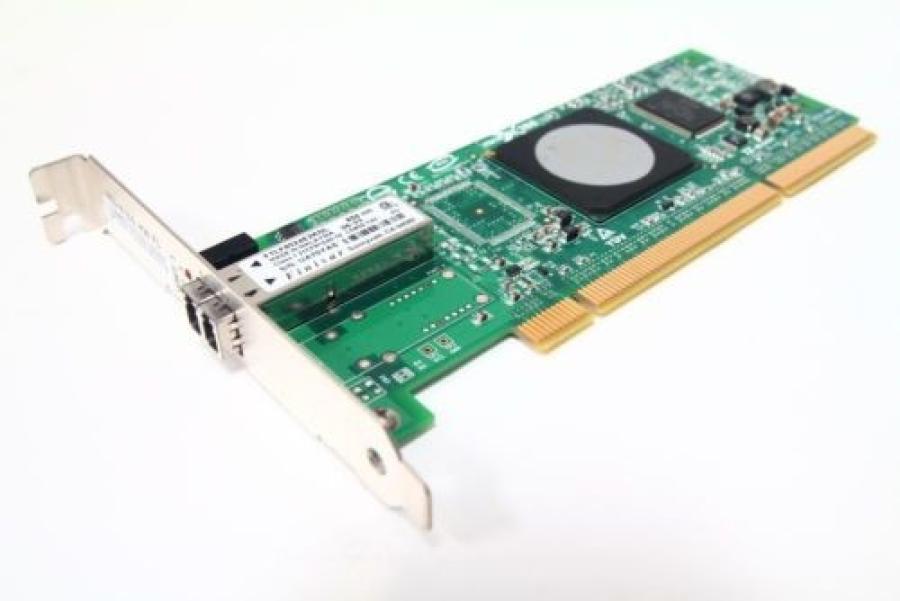

Сетевая карта SFP QLOGIC QLA2460

• Производитель - QLOGIC
• Модель - QLA2460
• Тип оборудования - Fibre Channel

• 64-bit, PCI-X 2.0 266-MHz DDR, совместим. с 66/33-MHz PCI и 133/100/66-MHz PCI-X

• 1-MB SRAM на каждый порт, 1-MB flash (SPI), 2-KB NVRAM (SPI)

• IA32 (x86), IA64, IEM64T, AMD Opteron 64, Sun SPARC, Apple G5 (Xserve and Power Mac)

• PCI Local Bus Specification, revision 2.3, PCI-X Protocol Addendum to the PCI Local Bus Specification, revision 2.0a, PCI-X Electrical and Mechanical Addendum (revision 2.0a) to the PCI Local Bus Specification, PCI Bus Power Management Interface Specification revision 1.1, PCI Hot Plug Specification, revision 1.0

Спецификации Fibre Channel:

• 4/2/1 Gbps auto-negotiation (4.2480/ 2.1240/ 1.0625 Gbps)

• 150,000 IOPS

• Point-to-point (N_Port), arbitrated loop (NL_Port), switched fabric (N_Port)

• Support for F_Port and FL_Port login, 2,048 concurrent logins and 2,048 active exchanges per port
• Class of service
• Class 2 and 3

• FCP (SCSI-FCP), IP (FC-IP), FC-TAPE (FCP-2)

• SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel Physical and Signaling Interface (FC-PH), Fibre Channel 2nd Generation (FC-PH-2), Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3), Fibre Channel-Arbitrated Loop (FC-AL-2), Fibre Channel Fabric Loop, Attachment Technical Report (FC-FLA), Fibre Channel-Private Loop Direct Attach Technical Report (FC-PLDA), Fibre Channel Tape (FC-TAPE) profile, SCSI Fibre Channel Protocol-2 (FCP-2), Second Generation FC Generic Services (FC-GS-2), Third Generation FC Generic Services (FC-GS-3), Fibre Channel Framing and Signaling (FC-FS)

• Один 4-Gbps FC

• SFF multimode оптика с коннектором LC

• Низкопрофильная карта MD2: 16.93×5.15 см.

• Стандартный: 1.84×12.08 см.
• Низкопрофильный 1.84×8.01 см.

• 1 Gbps: 500 meters 50/125 µm fiber, 300 meters 62.5/125 µm fiber
• 2 Gbps: 300 meters 50/125 µm fiber, 150 meters 62.5/125 µm fiber
• 4 Gbps: 150 meters 50/125 µm fiber, 70 meters 62.5/125 µm fiber

• SANsurfer FC HBA Manager

• Командная строка; утилиты для firmware, драйвера, загрузочный код и NVRAM

• BIOS, EFI, and FCode
• APIs
• SNIA HBA API V2, SMI-S и FDMI

• Windows® Server™ 2003; Windows 2000; Windows XP Pro; Solaris 8, 9, 10; Linux Red Hat AS 3.0, 4.0; Linux SuSE SLES 8, 9; Novell NetWare 6.5; Mac OS X
